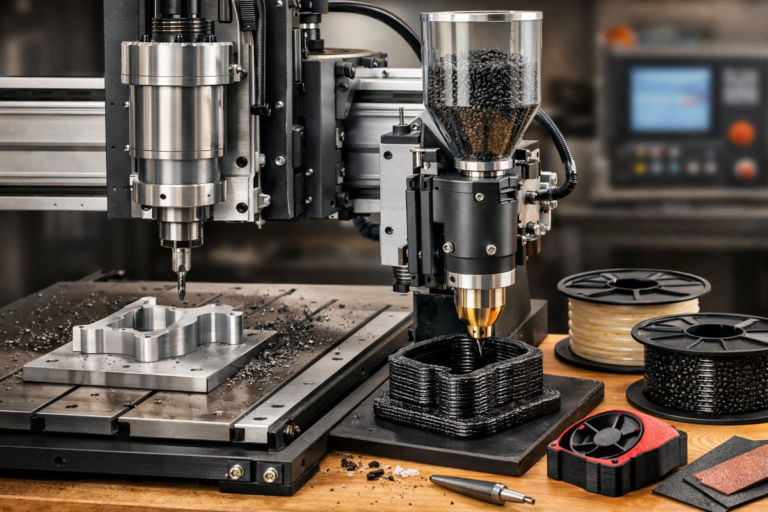

In the world of precision manufacturing, subtractive techniques like milling and routing have long reigned supreme. Yet additive processes promise freedom in form and material efficiency. By merging the two in a hybrid setup, you can harness the fine detailing of a CNC router alongside the geometric flexibility of extrusion‐based 3D printing. This guide takes you through a proven workflow for retrofitting a standard CNC router with an additive extrusion head, dialing in parameters, and executing your first hybrid build.
Blueprint to Reality
Your journey begins at the digital bench. Start with CAD software to model the part’s core geometry, splitting it into zones for additive buildup and subtractive finish. The lower section can be laid down in successive layers, accommodating complex overhangs without supports. The upper or critical faces receive a final CNC pass for tight tolerances and smooth surfaces. Export both toolpaths: one as a G-code for the extrusion head, the other for the spindle with end mills.
Machine Setup and Retrofit
To mount an extrusion head on your CNC router, secure a pellet or filament extruder to the Z-axis carriage. Ensure the extruder’s motor is rigidly clamped and that wiring stays clear of moving parts. Attach a temperature controller and a heated nozzle appropriate for your chosen polymer. Calibrate the nozzle height with a calibration probe or feeler gauge, targeting a 0.1-0.2 mm first-layer gap for reliable adhesion. Adjust your router’s payload settings to accommodate the extra weight and double-check wiring bundles to prevent snagging during the build.
Material Preparation and Temperature Control
Successful hybrid prints depend on dry, consistent filament or pellets. Use a drying oven or filament dryer cabinet to remove moisture, especially from hygroscopic materials like nylon or wood-filled PLA. Preheat the build plate to 50-60 °C, then ramp the extruder nozzle to the material’s recommended range-typically 200-240 °C for PLA and up to 260 °C for PETG variants. Stabilize the temperature with a PID controller to avoid thermal drift during long prints.
First Layer Magic
Load your additive G-code and run a dry run above the build surface to confirm travel moves. Then begin your first layer at a slow feed rate-around 30 mm/s-and a 100 % flow rate to form a solid foundation. Observe the bead width and layer adhesion, adjusting nozzle height in 0.05 mm increments if needed. A consistent first layer reduces voids and ensures subsequent layers track accurately with the CNC coordinates.
Synchronizing Motions
Hybrid manufacturing demands careful coordination between material deposition and milling operations. Use a single CAM platform or synchronize separate G-code files with a MDI script. Insert dwell commands (G4) at tool change boundaries to allow the nozzle to reach temperature or the spindle to ramp to full speed. Transfer the coordinate system origin precisely between additive and subtractive phases-using a touch probe or edge finder can prevent cumulative errors that lead to misalignment.
Layer-by-Layer Refinement
As the print progresses, monitor layer heights and bead consistency. Some setups benefit from variable layer heights-thicker for bulk fill, thinner for detailed geometry. Keep an eye on filament tension and the extruder’s drive gear wear. Occasionally pause the build to clean the nozzle and clear any stringing. These mid-print check-ins add minutes but can save hours by preventing layer failures.
Precision Finishing Pass
Once the additive phase completes, swap the extrusion head for a fine‐diameter end mill-typically 1-3 mm diameter carbide. Securely tighten the collet to minimize runout. Load your subtractive G-code and begin the finishing pass, removing minimal material to reveal pristine surfaces. Adjust spindle speed and feed rate for the polymer: around 12,000 rpm and 1,000 mm/min feed often deliver smooth edges on PLA. Keep cutting fluid or compressed air ready to clear chips and prevent heat buildup.
Post-Process and Surface Treatments
After machining, inspect the part for any tool marks or layer lines. Sanding with fine‐grit paper or vapour‐smoothing can elevate the finish. For structural parts, consider annealing to relieve stresses. If chemical resistance or aesthetic appeal is important, apply a thin coat of clear polymer sealant or UV-curing resin. This final layer enhances durability and unifies any color variations between additive and subtractive regions.
Workflow Optimization
With each build, refine your CAM strategies: adjust support structures, tweak overlap margins, and experiment with infill densities. Document your settings for each material and tool combination. Consider adding a vision system or laser triangulation sensor for real-time feedback, enabling adaptive control to correct minor deviations on the fly. These incremental improvements can cut build times and boost yield in production runs.
Safety and Maintenance
Hybrid manufacturing introduces extra safety considerations: hot nozzles, spinning spindles, and potential material debris. Wear protective eyewear and gloves during tool changes, and keep guards in place when the spindle is active. Regularly inspect extrusion components for wear, and clean the spindle collet to maintain grip. Lubricate linear rails and ball screws per manufacturer recommendations to ensure smooth motion under the added load of the extruder.
Unveiling New Potential
By integrating additive and subtractive manufacturing on a single platform, you unlock design freedom without forsaking tight tolerances. Prototypes can emerge faster, complex geometries no longer need support scarring, and bespoke tooling becomes a weekend project. Whether you’re crafting lightweight enclosures, custom fixtures, or functional prototypes, hybrid CNC printing bridges creativity and precision in one seamless workflow. Gather your tools, dial in your settings, and let the machine carve and build the future, layer by layer.
